Greenhouse Rolling Benches – Welded Wire Mesh/Expanded Metal Bench Top

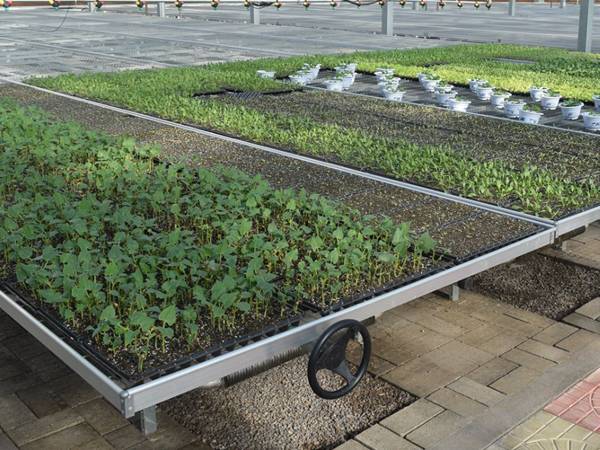

Greenhouse rolling bench is both economical and efficient type for grow seedlings. It allows nursery staff to move the access aisle from one side of the greenhouse to the other or anywhere in between. Because of this, you can cut down non-production space to a single rotating aisle, thus can increase the greenhouse area utilization to 80%.

The greenhouse bench tops are available in full welded wire mesh and expanded metal mesh. Entire rolling bench structure is designed with the latest features, including aluminum side profile, anti-tip device, wheel beams, smooth rounded corners and height adjustment legs. All of these are for efficient and convenient operation.

Catalogue Download

A drawing picture of greenhouse rolling bench with welded wire mesh top.

A drawing picture of greenhouse rolling bench with expanded metal top.

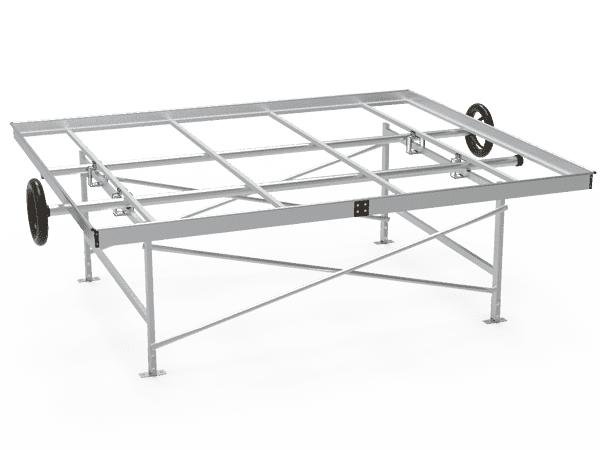

A drawing picture of greenhouse rolling bench frame.

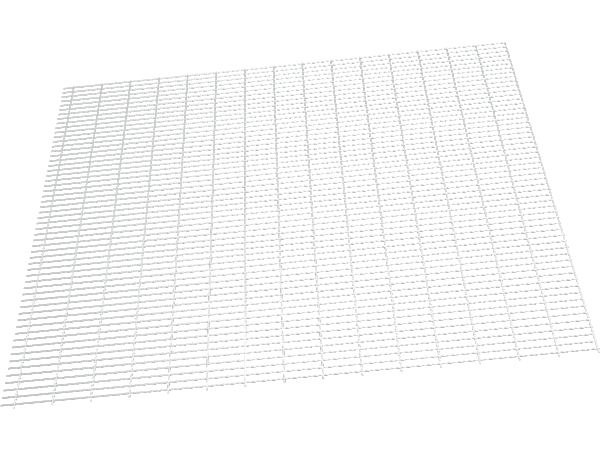

A drawing picture of rolling bench top made of welded wire mesh.

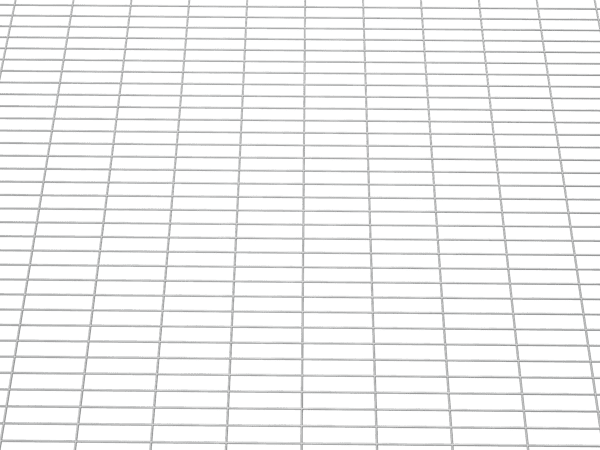

A detail picture of greenhouse bench top made of welded wire mesh.

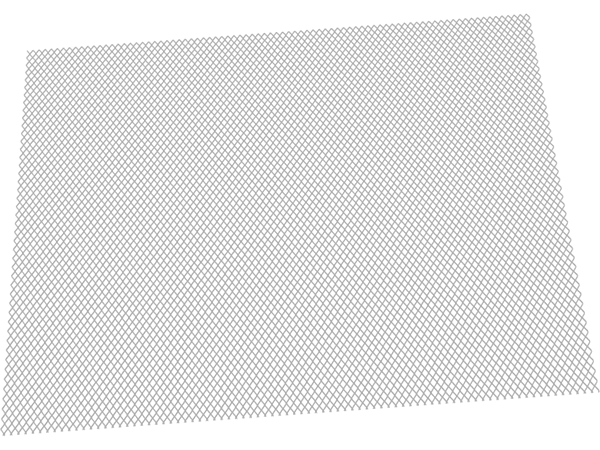

A drawing picture of rolling bench top made of expanded metal.

A detail picture of greenhouse bench top made of expanded metal.

Details & Feature

Galvanized surface treatment for corrosion resistant.
Anti-tip brackets keep bench tops in place despite unequal loads.
Save 60% to 90% of labor than traditional stationary benches.
Preassembly of components for easy installation.
Factory welded stands for easy operation.
Rounded safety corners prevent injury from sharp edges.
Increase the greenhouse area utilization to 80%.

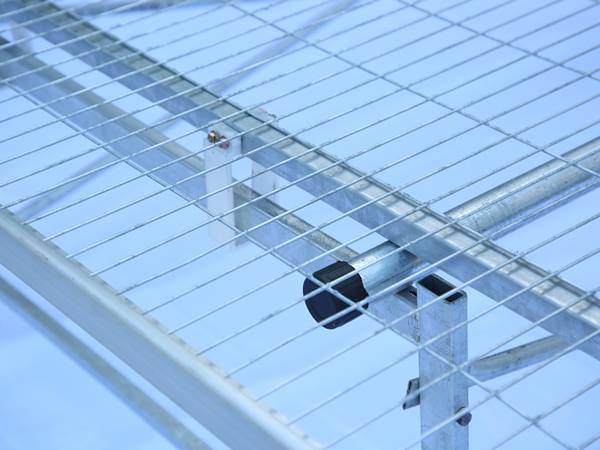

Greenhouse rolling bench top made of welded wire mesh.

Welded wire mesh greenhouse bench top

Greenhouse rolling bench top made of expanded metal.

Expanded metal greenhouse bench top

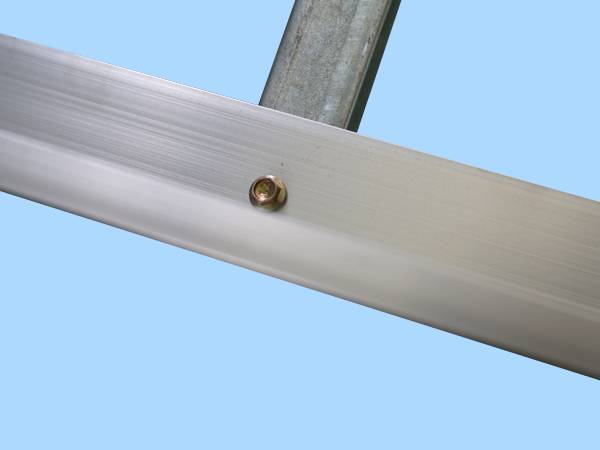

6063-T5 aluminium profile frame

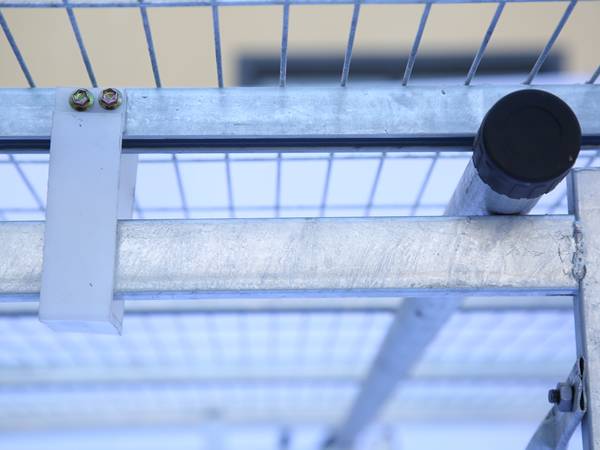

A close up picture of the anti-clip bracket of greenhouse rolling bench.

Anti-tip bracket

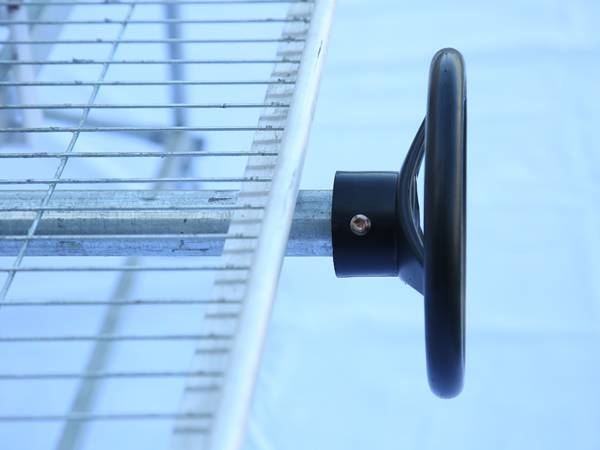

A close up picture of the steering wheel of greenhouse rolling bench.

Handy steering wheel

Specification

Drawing download

Welded rolling bench drawing Expanded metal rolling bench drawing

Material
- Bench top mesh: hot dipped galvanized steel wire, hot dipped galvanized steel plate.
- Frame: 6063-T5 aluminium profile.
- Middle cross beam: hot dipped galvanized steel tube.
- Bench stands: hot dipped galvanized steel tube.
- Wheel beam: hot dipped galvanized steel tube.
- Bench end braces: hot dipped galvanized steel tube.
- Corner brackets: ABS
- Anti-tip brackets: nylon
- Clip on bench side profile: aluminum alloy + ABS.
- Feet: hot dipped galvanized steel plate.
Bench Top Mesh Type: welded wire mesh, expanded metal.
Wire Diameter: 8 gauge, 10 gauge, 11 gauge.
Welded Wire Mesh Size: 47.2" × 10", 51.2" × 11.8", 49.5 × 20", 20" × 20".
Expanded Metal Size: 1.5" × 1", or according to customers' demand.
Bench Size (W × L): 4' × 8', 4' × 10', 5' × 10', 5' × 12', 5.6' × 15', etc.
Total Length: > 7.5', according to customers' demand.
Height: 23.6" – 31.5".
Moving Space: 12" – 19.7".
Color: sliver.
UV Resistant: yes.
Metal Support: available.
Zinc Coating: 500 g/m².
Bearing Capacity: up to 500 N/m².
Service Life: 20 years.
