Greenhouse Sprinkler

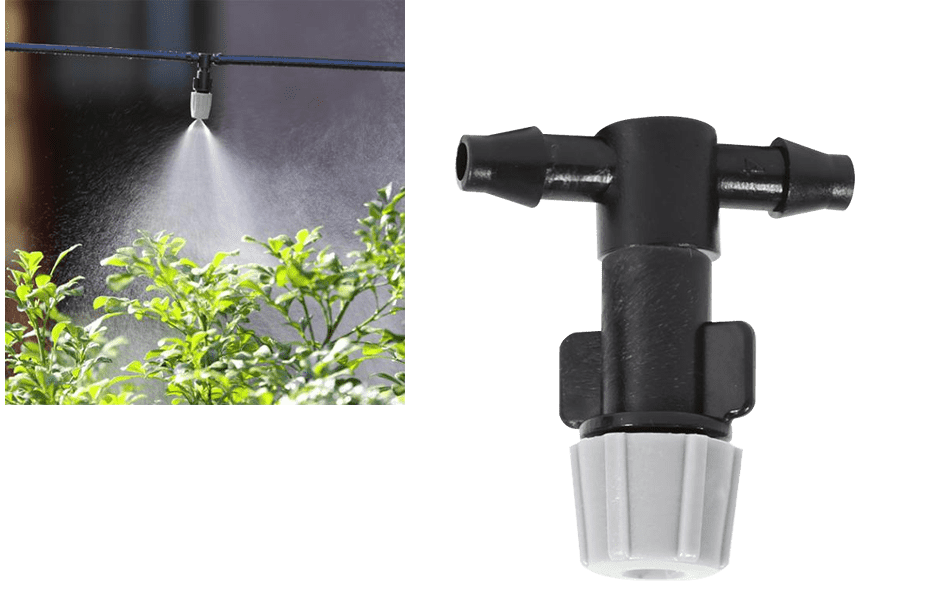

There is a black sprinkler head.

Description
Feature
Specification
Application & Projects

Description

Greenhouse Sprinkler – Watering Your Plants Efficiently and Precisely

Greenhouse sprinkler, also know as greenhouse misting system, is an automatic overhead watering method for greenhouse and nursery irrigation. It is mainly used for increasing humidity and cleaning the dust in the air, which is ideal for nursery seedlings.

Our greenhouse sprinkler system mainly includes sprinkler heads, operating orbit, transfer orbit and host. Commonly, each greenhouse need to install a set of sprinkler orbit and supported by a host. If one machine is used in multiple greenhouses, the transfer vehicle and transfer track are necessary. As a manufacturer, we offer multi-angle of sprinkler heads and mister head is available.

Catalogue Download

The greenhouse is installed with sprinkler irrigation system.

Feature

Overall cost reduction, fast payback.
Overhead irrigation method reduces plant stress.
Anti-drip design prevent injury to the seedlings.
Water thoroughly each time.
Excellent uniformity and flexibility.
Increased germination & reduced plant disease.
Low maintenance & high durability.

Specification

Dimensions (L × W × H): 900 × 900 × 385 mm.
Sprinkler Head Angle: 80 °C, 180 °C, 360 °C.
Spray Uniformity Coefficient: ≥ 80%.
Walking Speed: 4–16.5 m/min.
Maximum Spray Width: 15 m.
Maximum Spray Walking Distance: 70 m.
Work Pressure: 0.3 MPa.
Motor Power: 250 W.
Input Power: 220 V/50 Hz.
Enter Water Pressure: 2–5 kgf/cm².
Water Flow: 40 l/h – 130 l/h.

Application & Projects

Greenhouse sprinkler system is ideal for seedlings, flowers and plants required special irrigation.

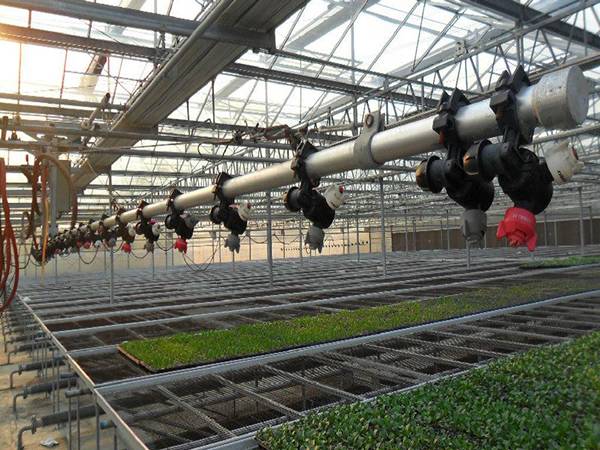

The seed seedlings nursery is installed with greenhouse irrigation.

Greenhouse sprinkler for seedlings irrigation

Use greenhouse sprinkler to water the green seedlings.

Greenhouse sprinkler for green seedlings

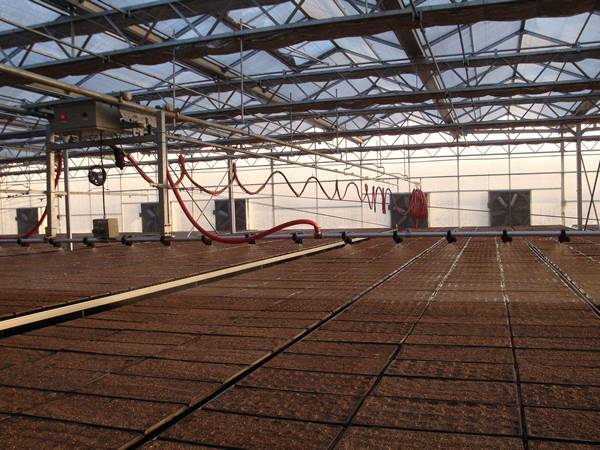

The greenhouse is installed with welded rolling benches and sprinkler system.

Greenhouse sprinkler installation site

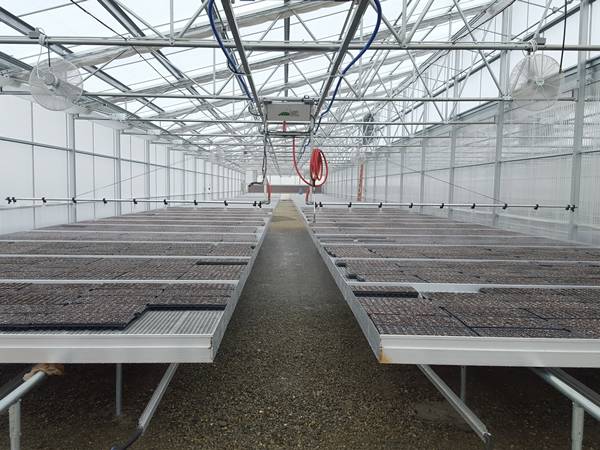

Use greenhouse sprinkler to water the seed seedlings.

Greenhouse sprinkler for seed seedlings

The large scale greenhouse is installed with sprinkler system.

Sprinkler system for large scale nursery

The greenhouse is installed with overhead sprinkler system.

Sprinkler system for greenhouse seedlings
