HDPE Greenhouse Insect Screen – High Tensile Strength & Avirulent

Greenhouse insect screen adopts high tensile strength HDPE filaments as material. It is the first choice for controlling various crop and vegetable pests by a physical method. This ensures a significant reduction in the use of chemical pesticides in the greenhouse, thereby improving the quality of seedlings.

In addition to pest control, it also has the functions of light transmission, moderate shading and ventilation. The anti-insect effect depends on the size of the mesh (mesh=number of holes per inch). Please contact us for reliable select advice according to the insect that is prevalent in the area.

Catalogue Download

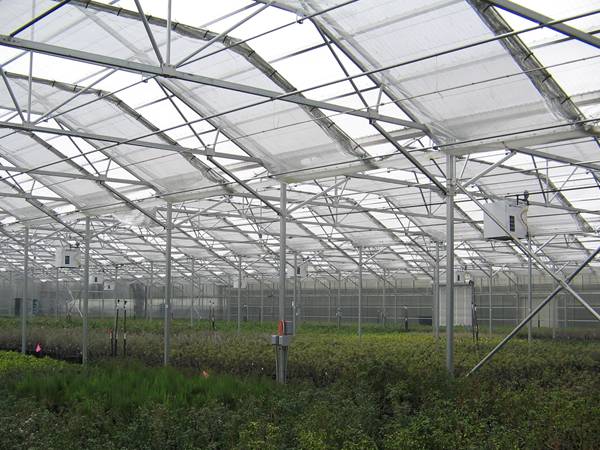

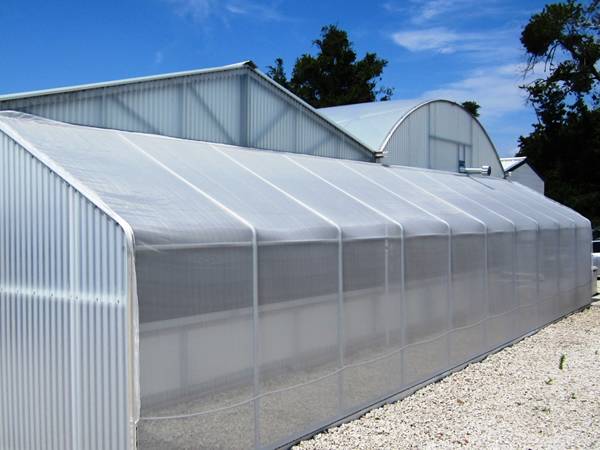

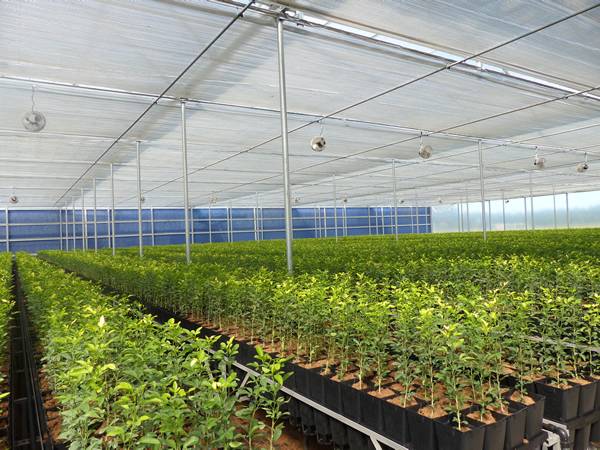

The greenhouse is installed with HDPE insect screen.

Details & Feature

100% HDPE material for high tensile strength.
Finely woven technology for uniform screen surface.
Transparent, air permeable & UV stabilized.
Reduce pesticide use, increase seedlings quality.
Various mesh size for different defense needs.
Lightweight and can be installed in both new & existing greenhouse.

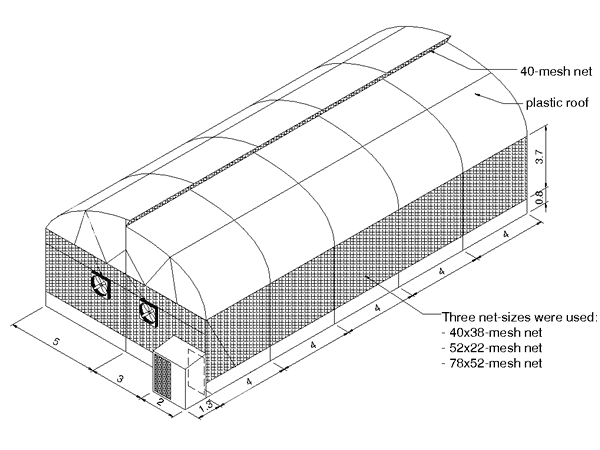

There is a diagram of greenhouse installed with insect screen.

Insect screen installation diagram

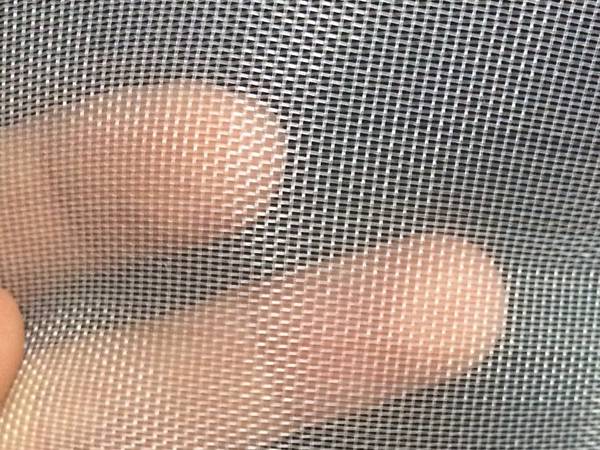

17 mesh greenhouse insect screen

25 mesh greenhouse insect screen

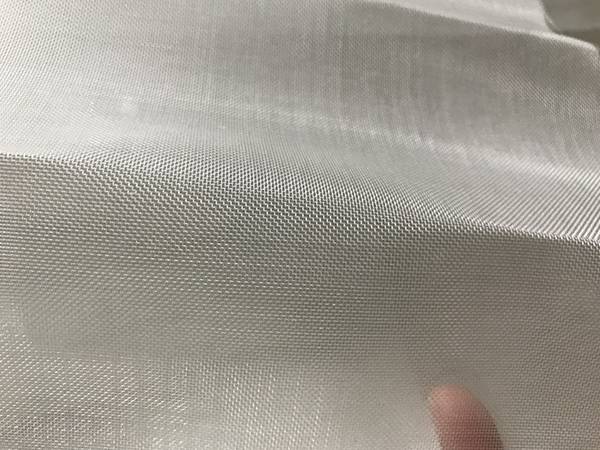

40 mesh greenhouse insect screen

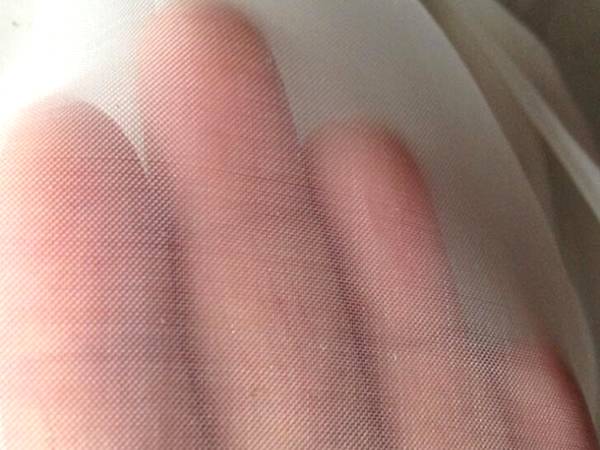

50 mesh greenhouse insect screen

Specification

Material: 100% HDPE.
Hole Type: diamond, hexagonal and square.
Mesh: 17 × 17 mesh, 25 × 25 mesh, 40 × 40 mesh, 25 × 50 mesh, 75 × 75 mesh.
Width: 1–6 m.
Length: 50 m, 100 m.
Weight: 30–50 g/m².
Process: warp knitted.
Color: white, green, blue, black, etc.
UV Resistant: 1% – 5%.
Shade Value: 12% – 27%.
Light Transmission: 80%.
Service Life: 2–8 years.

Application & Projects

17 mesh: protection against fruit flies, grape moth and fruit butterfly. It is resistant to hail and wind.
25 mesh: protection against birds, bats and fruit flies into the greenhouse. It acts as a windbreak and contribute to higher yields.

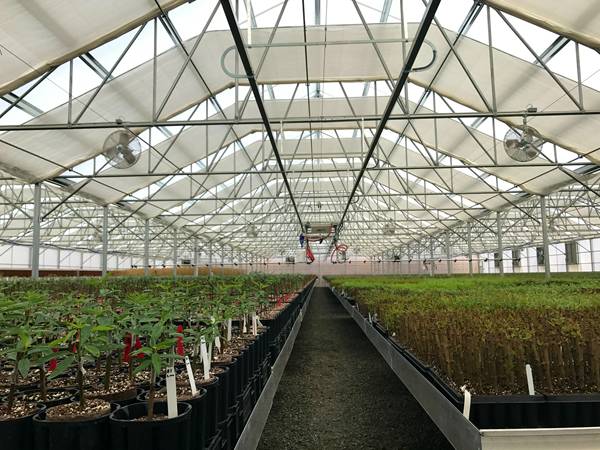

40 mesh: used in cultivation of flowers and vegetables in greenhouse and nursery. It gives high durability and longevity.
50 mesh: block out tobacco whitefly, leaf miner, aphids and thrips. It has strong tucked selvedges and excellent flexibility.
75 mesh: high density can completely block out pets and resistant to hail, wind and solar ulatraviolet radiation.
