Description

Ebb and Flow Benches – Efficient, Space-Saving and User-Friendly

Ebb and flow benches, also known as ebb and flood rolling benches, are the most popular greenhouse benches for hydroponic cultivation system. Different from traditional rolling bench top, the ebb and flow trays are made of engineering plastics (ABS) through vacuum molded process. Finished with drainage channels, nutrient solution can flow evenly throughout but cover the entire surface of the bench and then drain completely when watering finished. Let your every tender seedling grow vigorously, no plants are sitting in standing water.

All components are manufactured from quality material for high bearing capacity and long service life. Standard off-the-shelf models as well as custom made-to-order solutions are all available.

Catalogue Download
Details & Feature
  • Rolling system is space-saving and can save 60% to 90% of labor.
  • Fully recirculating system can save 50% to 90% water.
  • Save 75% to 90% fertilizer than traditional watering methods.
  • Preassembly of components for easy installation.
  • Factory welded stands for easy operation.
  • Mitred corners prevent workers or customers from ripping clothing.
  • Anti-tip mechanisms on rolling benches.
Specification

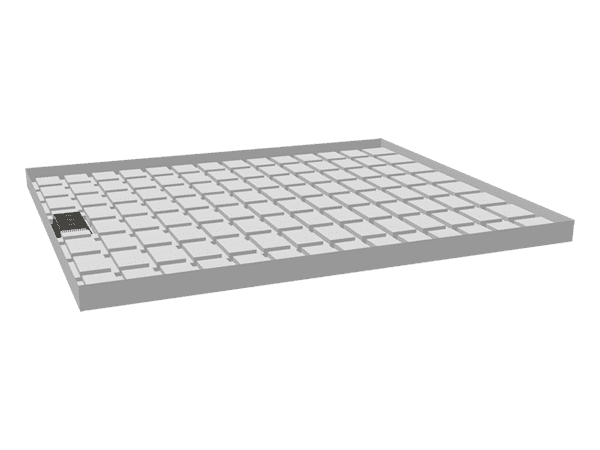

Drawing download
  • Material
    • Ebb and flow tray: ABS plastic.

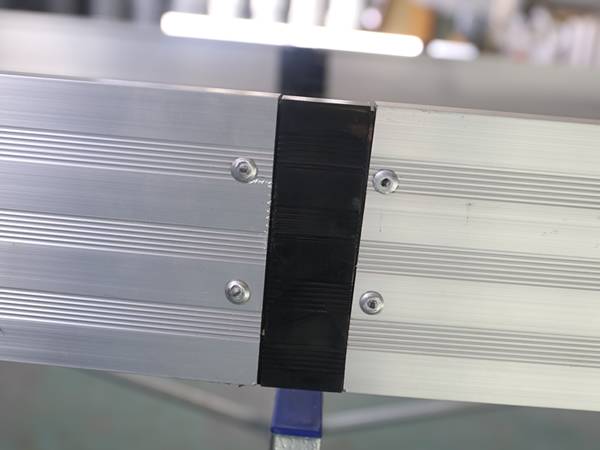

    • Frame: 6063-T5 aluminium profile.
    • Middle cross beam: hot dipped galvanized steel tube.
    • Bench stands: hot dipped galvanized steel tube.
    • Wheel beam: hot dipped galvanized steel tube.
    • Bench end braces: hot dipped galvanized steel tube.
    • Feet: hot dipped galvanized steel plate.
    • Corner brackets: ABS
    • Anti-tip brackets: nylon
    • Clip on bench side profile: aluminum alloy + ABS.
  • Bench Size (W × L): 4' × 8', 4' × 10', 5' × 10', 5' × 12', 5.6' × 15', maximum 6.56' × 19.7'.
  • Total Length: > 7.5', according to customers' demand.
  • Tray Height: 1.18", 2.95", 4.92", etc.
  • Moving Space: 12" – 19.7".
  • Color: sliver.
  • UV Resistant: yes.
  • Bearing Capacity: up to 500 N/m2.
  • Metal Support: available.
  • Service Life: 20 years.
Why Us?
There are a stack of ABS plastic sheet.

Adopt UV resistant ABS plastic as material

There are a stack of ABS plastic sheet.

Reasonable layout design scheme

There is a plastic vacuum forming machine.

Advanced CNC machining technology

Application & Projects

Ebb and flow benches are ideal for planting vegetables, flowers, seedlings, crops and germinating grow.

They are widely used in
  • Greenhouse.
  • Nursery.
  • Hydroponics.
  • Research glasshouses
  • Retail and institutional uses.
There are many potted plants on the ebb and flow greenhouse benches.

Ebb & flow benches for potted plants

There is a large-scale nursery with ebb and flow greenhouse benches.

Ebb & flow benches for large-scale nursery

There are a lot of peace lily on the ebb and flow greenhouse benches.

Ebb & flow benches for peace lily cultivation

There are a lot of green seedlings on the ebb and flow greenhouse benches.

Ebb & flow benches for seedling cultivation

There are a lot of Golden Hahnii plants on the ebb and flow greenhouse benches.

Ebb & flow benches for golden hahnii

The research greenhouse is designed with ebb and flow greenhouse benches.

Ebb & flow benches for research greenhouse
