NFT Hydroponic System – Soil-Less Cultivation, Easy to Pick

NFT hydroponic system is a growing system that constantly recirculates the water and nutrient through the growth trough. It provides a controlled growing environment situation for various vegetable crops. In this case, leafy greens can grow in ideal nutrient and climate level. And result in a well-developed root growth but higher crops quality.

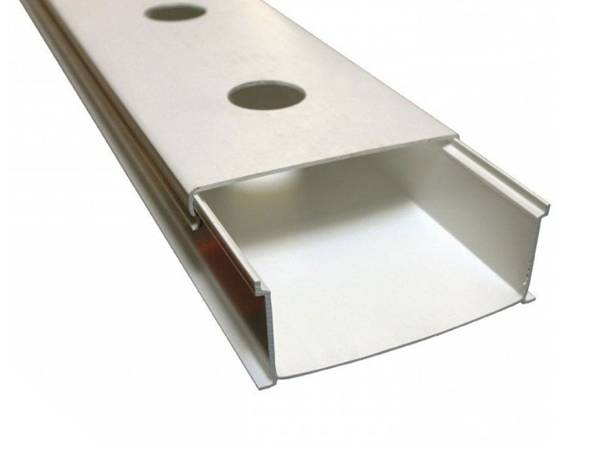

The growing channels are made of food grade extruded PVC pipes. There is a detachable lid for easy cleaning and end caps for draining the waste nutrient solutions. Featured by its channel structure, plants' root system can be easily pulled from the cultivating container. In order to reduce the labors, we have eliminated the openings where algae can grow.

Catalogue Download
Details & Feature
  • Hydroponics tower system for greenhouse vegetables.
  • Shorten the period of growing, increase the output.

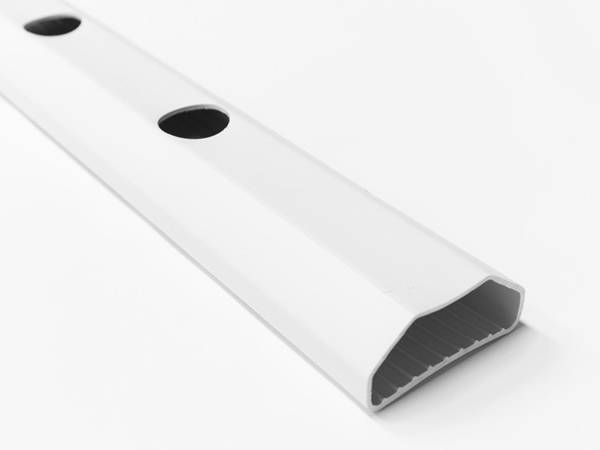

  • Trough bottom with ridges for consistent nutrient tracking/flow.

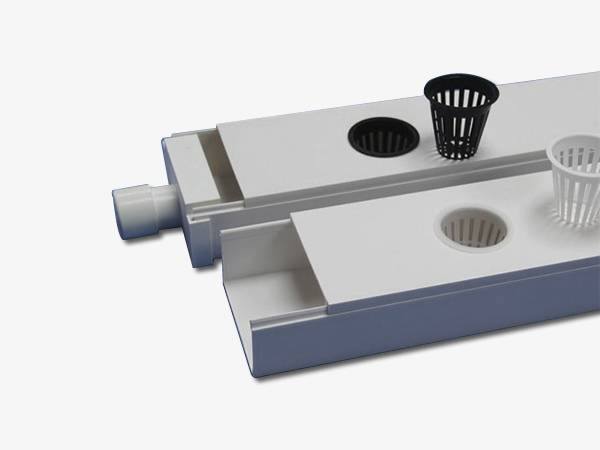

  • Round plant site holes for efficient moving, transplanting & picking.
  • Fertilizer & water saving.
  • Custom lengths, hole sizes, and spacing available.
Specification
  • Material:
    • Trough: food grade PVC pipe.
    • Frame: stainless steel, hot galvanized steel.
  • PVC Pipe Thickness: 1/8".
  • Frame Size (W × H): 4' x 5.9".
  • Frame Length: 6.6', 13', 19.7' or customized..
  • Trough Shape: square, round.
  • Trough Length: 9.2', 9.8'.
  • Trough Size :(W × D): 4" x 2", 4" x 2.7", 6.1" x 2.75", 9" x 3".
  • Holes: 1.75" spaced every 7.75".
  • UV Resistant: yes.
  • Bearing Capacity: up to 500 N/m2.
  • Service Life: 20 years.
Application & Projects
  • Leaf Vegetables
    • Lettuce.
    • Cabbage.
    • Spinacia.
    • Celery.
    • Oilseed rape.
    • Amaranth.
  • Fruits and Vegetables
    • Strawberry.
    • Tomato.
    • Bell pepper.
    • Eggplant & pumpkin.
    • Balsam pear & sword bean.
    • Cucumber & white gourd.
Spring greens growing in the NFT hydroponic system.

NFT hydroponic system for spring greens

Leafy vegetables growing in the round NFT hydroponic system.

NFT hydroponic system for leafy vegetables

Fresh strawberry plants growing in the round NFT hydroponic system.

NFT hydroponic system for strawberry growing

Cabbage lettuces growing in the square NFT hydroponic system.

NFT hydroponic system for cabbage lettuce

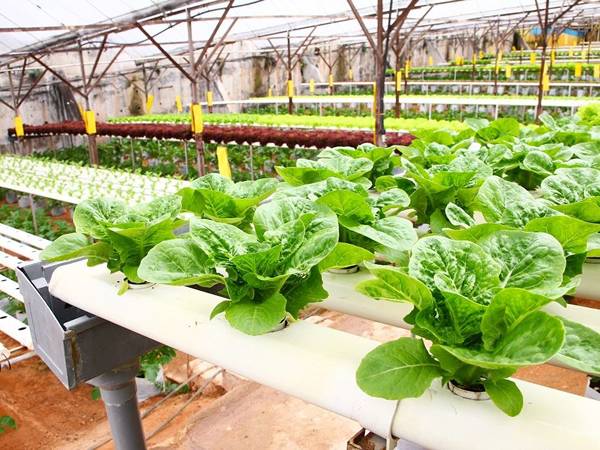

Large scale vegetable factory installed with square NFT hydroponic system.

NFT hydroponic system for vegetable factory

Fresh pakchoi plants growing in the square NFT hydroponic system.

NFT hydroponic system for pakchoi growing
